IFOS-2 Series specifications

IFOS-5 Series specifications

Other Inertial Measurement Units models specifications

IFOS-2 series

Parameter

IFOS-2



IFOS-2-3



IFOS-2-5



IFOS-2G

*with 3-fiber SLED transceiver
Gyro
Allan Deviation Plot of typical device gyroscopes Allan deviation of gyroscope data
Range of measured angular rate, °/s ±950 ±760 ±495 ±495
Bias drift at fixed temperature, °/hour ≤0.15 ≤0.1 ≤0.05  ≤0.05
Bias drift at changing temperature from -30°C to +60°C (100s-averaging, 1σ), °/hour ≤0.3 ≤0.2 ≤0.15 ≤0.1
Scale factor error in temperature range -30°C to +60°C (1σ), ppm ≤250 ≤200 ≤200 ≤200
Random walk, °/√hour ≤0.02 ≤0.012 ≤0.008 ≤0.005
Bandwidth, Hz >1000 (user defined) >1000 (user defined) >1000 (user defined) >1000 (user defined)
Accelerometers
Accelerometer type MEMS MEMS MEMS MEMS

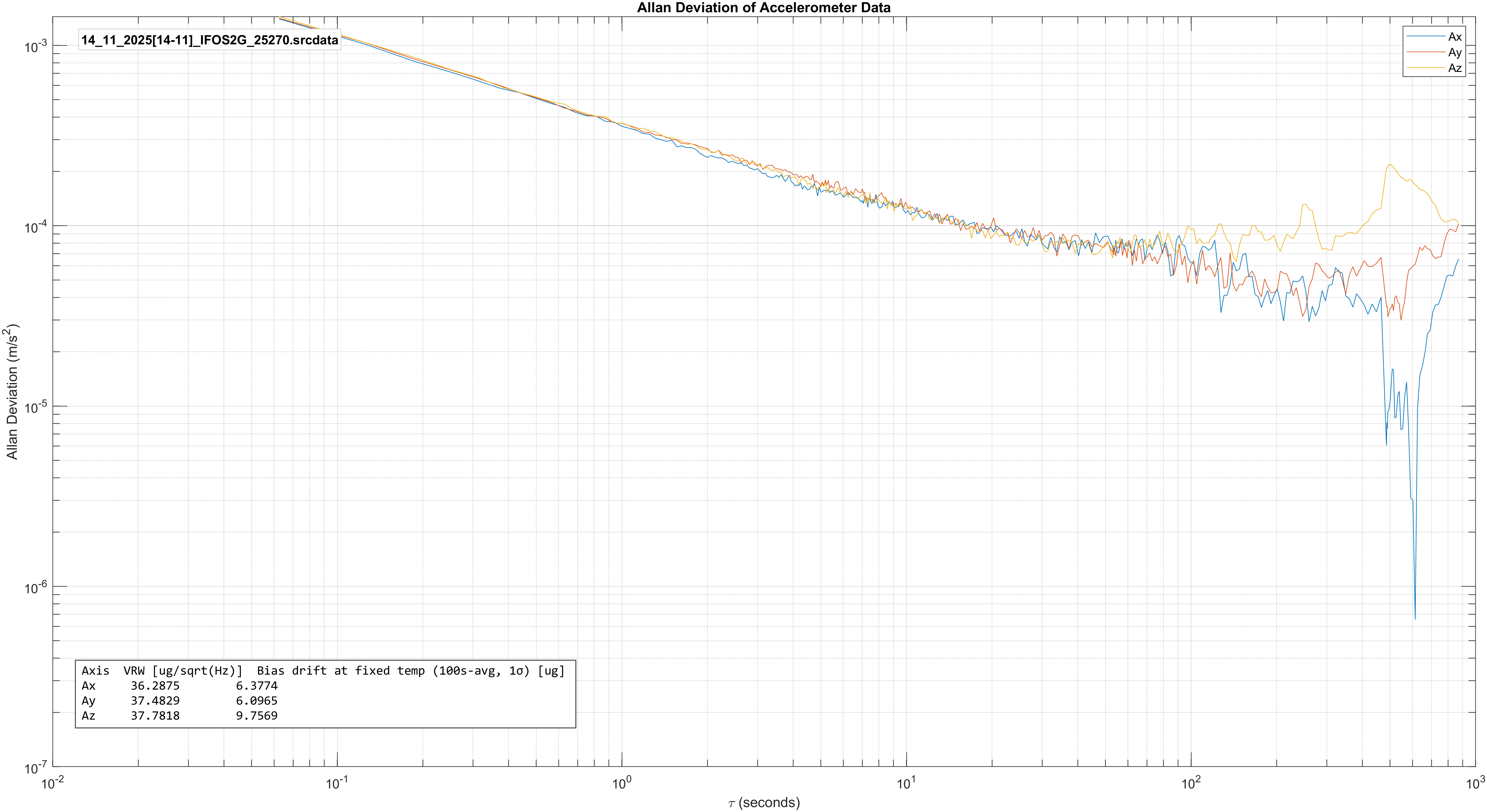

Allan Deviation Plot of typical device accelerometers Allan deviation of accelerometer data
Range of measured acceleration, g ±10g to ±40g ±10g to ±40g ±10g to ±40g ±10g to ±40g
Bias drift at constant temperature, mg ≤0.03 ≤0.03 ≤0.03 ≤0.03
Bias drift at changing temperature from -30°C to +60°C (100s-averaging, 1σ), °/hour 0.3 0.3 0.3 0.3
Velocity random walk, µg/√Hz ≤80 ≤80 ≤80 ≤80
Scale factor error in temperature range -30°C to +60°C (1σ), ppm ≤100 ≤100 ≤100 ≤100
Physical Characteristics
Misalignment, deg ≤0.06 ≤0.06 ≤0.06 ≤0.06
Output sample rate up to 2000 Hz up to 2000 Hz up to 2000 Hz up to 2000 Hz
Power supply, V 5±0.25 5 or 27 5 or 27 5 or 27
Power consumption, W ≤7 W ≤7 W ≤7 W ≤7 W
Digital output interface RS-422 RS-422 RS-422 RS-422
Operation temperature  -30°C ~ +60°C -30°C ~ +60°C -30°C ~ +60°C -30°C ~ +60°C
Dimensions, mm 75×75×60 75×75×60 75×75×60 75×75×60
Weight, kg 0.5 0.5 0.5 0.5





IFOS-5 Series



Parameter

 IFOS-5M



 IFOS-5M-G

*with 3-fiber SLED transceiver

 IFOS-5-4



IFOS-5-5


Gyro
Range of measured angular rate, °/s ±320 ±320 ±430 ±320
Bias drift at fixed temperature, °/hour ≤0.04 ≤0.02 ≤0.05 ≤0.03
Bias drift at changing temperature from -30°C to +60°C (100s-averaging, 1σ), °/hour ≤0.07 ≤0.07 ≤0.1 ≤0.07
Scale factor error in temperature range -30°C to +60°C (1σ), ppm ≤200 ≤200 ≤200 ≤200
Random walk, °/√hour ≤0.004 ≤0.003 ≤0.006 ≤0.003
Bandwidth, Hz >1000 Hz (user defined) >1000 Hz (user defined) >1000 Hz (user defined) >1000 Hz (user defined)
Accelerometers
Accelerometer type MEMS MEMS Quartz Quartz
Range of measured acceleration, g ±10g to ±40g ±10g to ±40g ±10g to ±60g ±10g to ±60g
Bias drift at constant temperature, mg 0.03 0.03 0.02 0.02
Bias drift in temperature range: -30°C to +60°C (1σ), mg 0.3 0.3 0.25 0.25
Velocity random walk, µg/√Hz 60 60 20 20
Scale factor error in temperature range:  -30°C to +60°C (1σ),  ppm 100 100 200 200
Physical characteristic
Misalignment, deg 0.06 0.06 0.06 0.06
Output sample rate Up to 1000 Hz Up to 1000 Hz Up to 1000 Hz Up to 1000 Hz
Power supply, V 5V DC (27V DC is possible) 5V DC (27V DC is possible) 5V DC (27V DC is possible) 5V DC (27V DC is possible)
Power consumption, W 7 7 7 7
Digital output interface RS422 RS422 RS422 RS422
Operation temperature  -30°C ~ +60°C -30°C ~ +60°C -30°C ~ +60°C -30°C ~ +60°C
Dimensions, mm 110 × 110 × 90 110 × 110 × 90 110 × 110 × 90 110 × 110 × 90
Weight, kg 1.2 1.2 1.4 1.4

Other models

Parameter

 IFOS-4



 IFOS-6M-G

*with 3-fiber SLED transceiver

 IFOS-6



 IFOS-6A-G

*with 3-fiber SLED transceiver

IFOS-10


Gyro

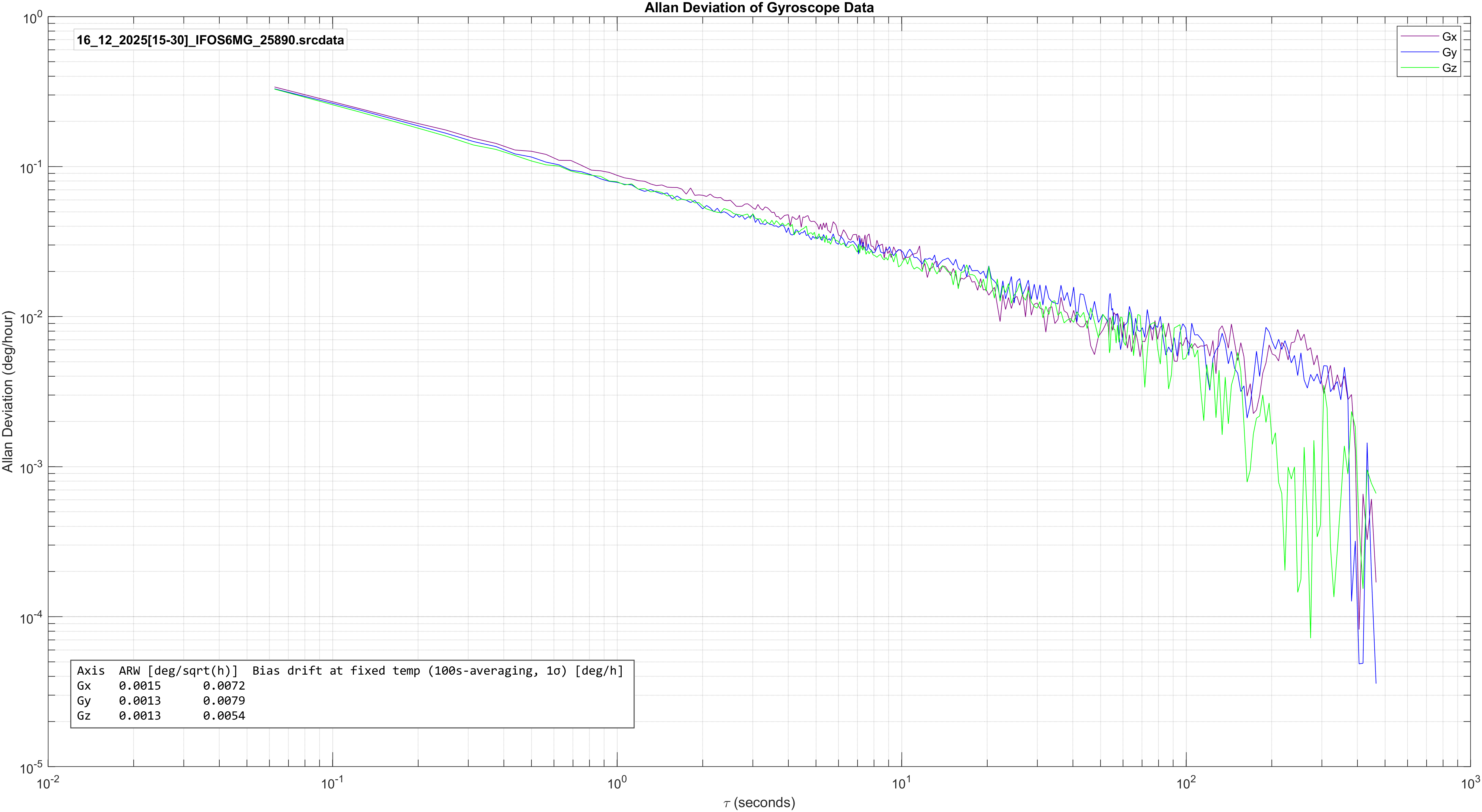

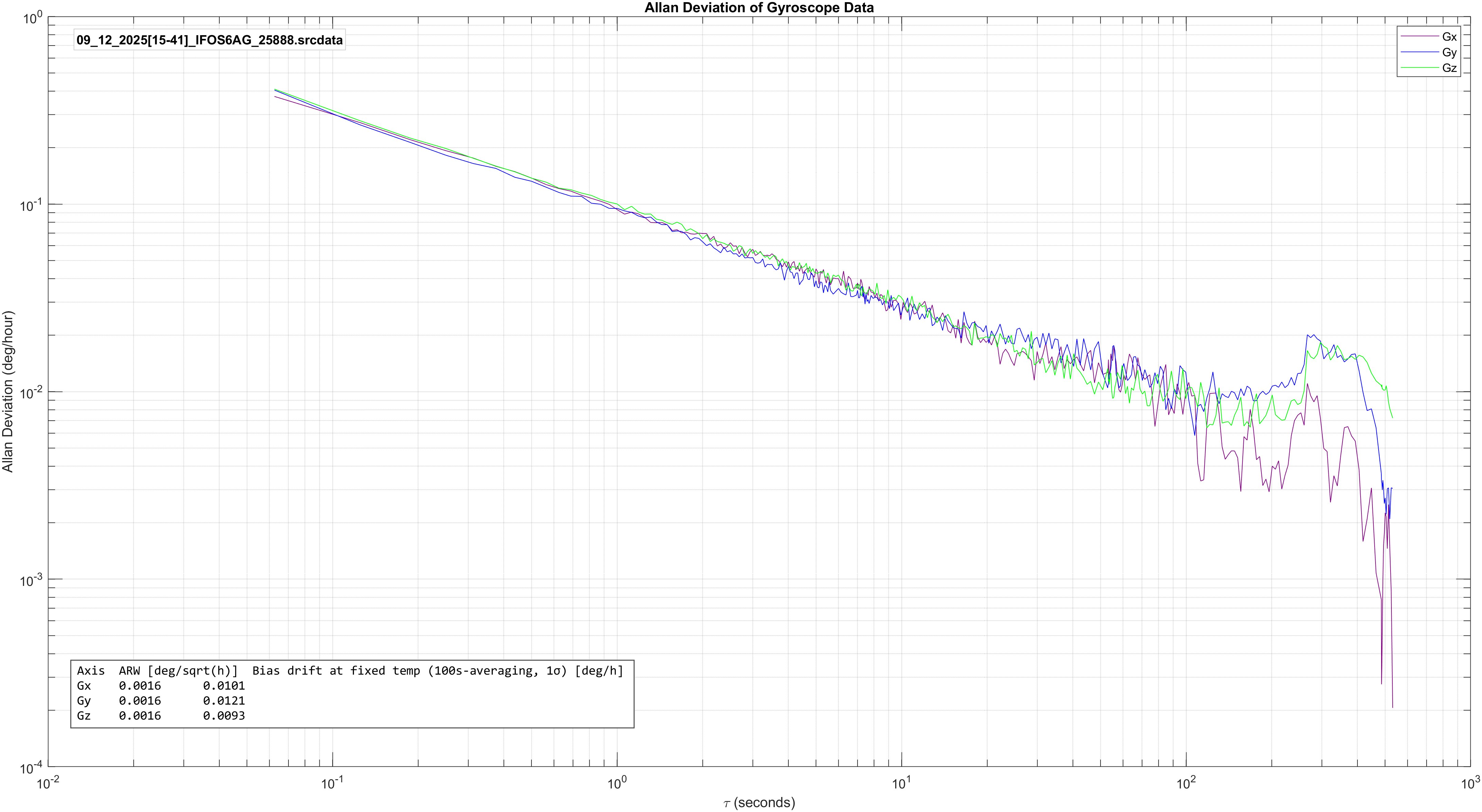

Allan Deviation Plot of typical device gyroscopes Allan deviation of gyroscope data Allan deviation of gyroscope data
Range of measured angular rate, °/s ±550 ±290 ±290 (optional ±1000) ±290 ±550
Bias drift at fixed temperature, °/hour ≤0.05 ≤0.02 ≤0.02 ≤0.02 ≤0.005
Bias drift at changing temperature from -30°C to +60°C (100s-averaging, 1σ), °/hour ≤0.4 ≤0.05 ≤0.05 ≤0.05 ≤0.03
Scale factor error in temperature range -30°C to +60°C (1σ), ppm ≤150 ≤200 ≤100 ≤200 ≤100
Random walk, °/√hour ≤0.01 ≤0.002 ≤0.005 ≤0.002 ≤0.0007
Bandwidth, Hz >1000 (user defined) >1000 (user defined) >1000 (user defined) >1000 (user defined) >1000 (user defined)
Accelerometers
Accelerometer type MEMS MEMS Quartz Quartz Quartz

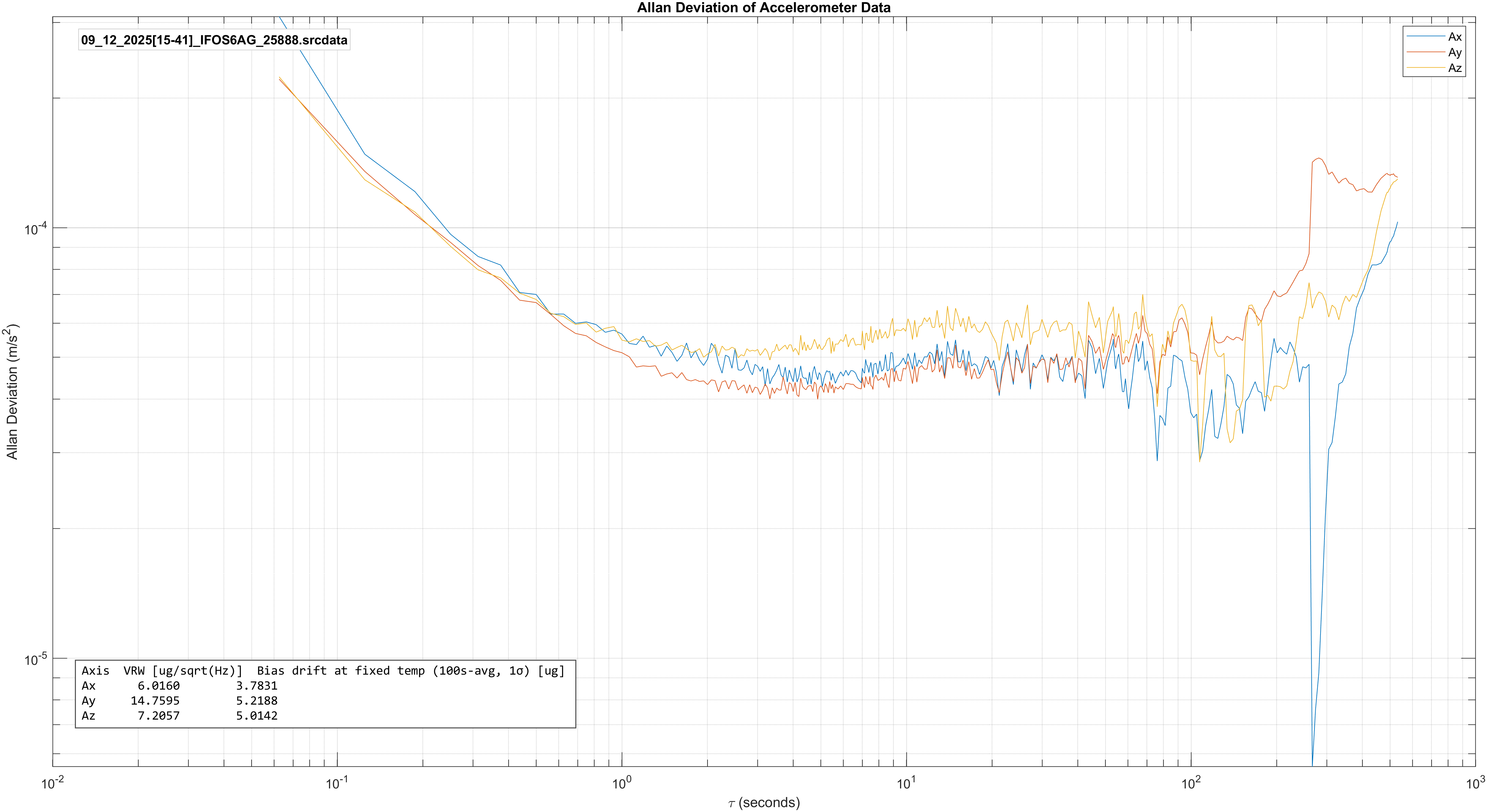

Allan Deviation Plot of typical device accelerometers Allan deviation of accelerometer data Allan deviation of accelerometer data
Range of measured acceleration, g ±10g to ±40g ±10g to ±40g ±10g to ±60g ±10g to ±60g ±10g to ±60g
Bias drift at constant temperature, mg ≤0.03 ≤0.03 ≤0.02 ≤0.02 ≤0.02
Bias drift in temperature range: -30°C to +60°C (1σ), mg 0.3 0.3 0.25 0.25 0.25
Velocity random walk, µg/√Hz ≤60 ≤60 ≤20 ≤20 ≤20
Scale factor error in temperature range -30°C to +60°C (1σ), ppm ≤100 ≤100 ≤200 ≤200 ≤200
Physical Characteristics
Misalignment, ° ≤0.06 ≤0.06 ≤0.06 ≤0.06 ≤0.06
Output sample rate up to 2000 Hz up to 2000 Hz up to 2000 Hz up to 2000 Hz up to 2000 Hz
Power supply, V 5±0.25 5±0.25 27±5 5±0.25 27±5
Power consumption, W ≤7 W ≤8 W ≤20 W ≤8 W ≤20 W
Digital output interface RS-422 RS-422 RS-422 RS-422 RS-422
Operation temperature  -30°C ~ +60°C -30°C ~ +60°C -30°C ~ +60°C -30°C ~ +60°C -30°C ~ +60°C
Dimensions, mm 80 x 95 x 65 123 x 123 x 100 140 × 140 × 110 123 x 123 x 100 171 × 224 × 233
Weight, kg 0.7 1.7 3 1.7 8.4
